Product Overview

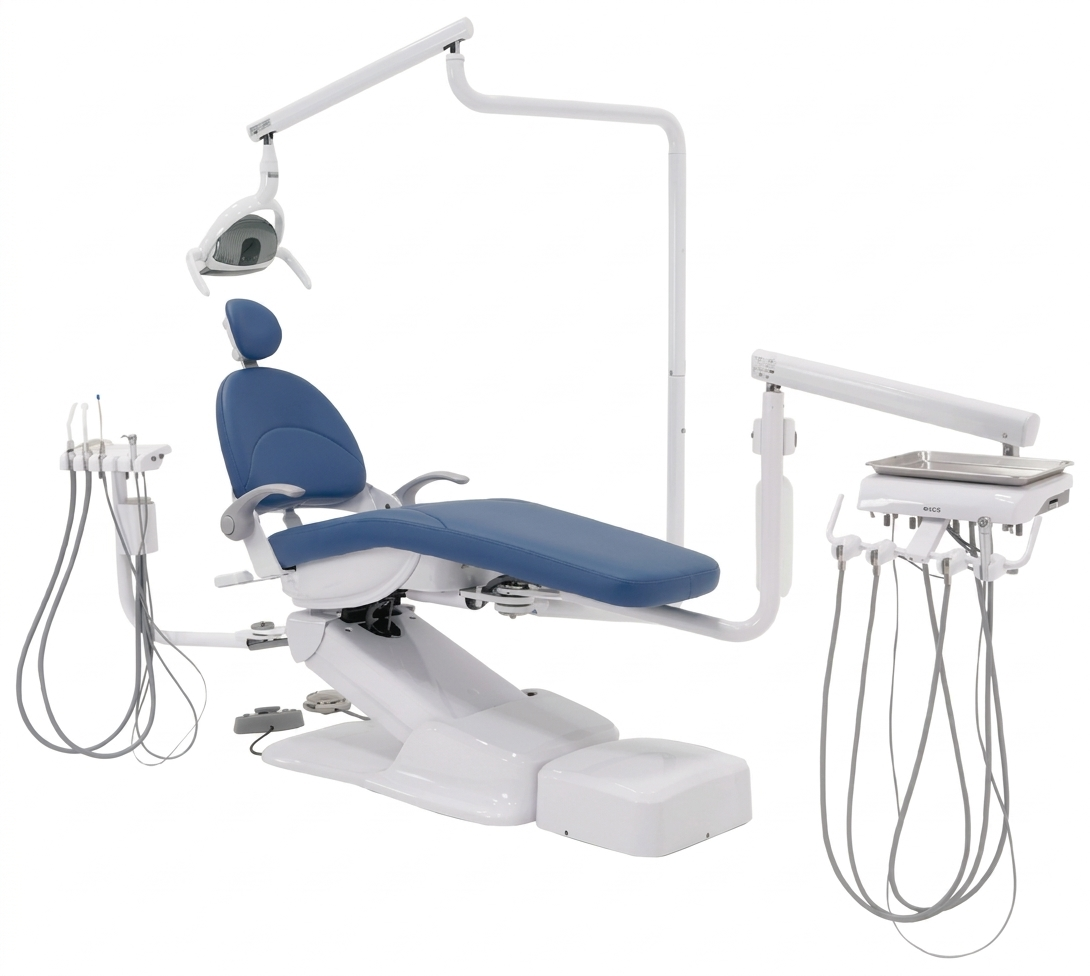

The ADS AJ15 Classic 201 Dental Chair Package is a premium, heavy-duty hydraulic operatory system engineered to deliver exceptional patient comfort, robust durability, and streamlined clinical efficiency. Combining a rock-solid cast iron and steel foundation with advanced pneumatic and fluid controls, this package is explicitly optimized for seamless four-handed dentistry. It integrates advanced touchless aseptic technologies, customizable positioning, and isolated clean-water configurations to meet the demanding standards of modern dental practices.
Key Pillars of Value
-
Heavy-Duty Ergonomics: Built on a massive cast-iron frame with a high weight capacity (550 lbs), utilizing a smooth hydraulic drive with “Soft Start/Stop” technology to prevent sudden movements that cause patient anxiety.
-
Aseptic Clinical Control: Outfitted with specialized, easy-to-wipe asepsis tubing, a non-slip stainless steel tray, and a touchless motion-sensor LED light to actively mitigate cross-contamination risks.
-
Optimal Access: Features an ultra-narrow backrest that allows clinicians to position themselves closer to the oral cavity, complemented by a 60-degree seat swivel and swing-down armrests for effortless patient entry and exit.
Complete Feature & Specification Matrix
| Component Module | Features & Technical Specifications |
| Patient Chair (AJ15) |
• Drive System: Heavy-duty hydraulic with smooth, jerk-free “Soft Start/Stop” • Presets: 3 programmable memory positions + automated return-to-zero • Frame Construction: Solid cast iron frame, steel backrest support, steel base plate • Upholstery: Upgraded fiber leather (highly chemical-resistant, antimicrobial, and breathable) • Patient Access: 60° seat rotation, swing up/down armrests, thin/narrow backrest design • Headrest: Double articulating for precise cervical neck stabilization and positioning • Safety System: Integrated safety shut-off base switch to halt movement upon hitting obstacles • Max Weight Capacity: 550 lbs (250 kg) • Controls: Interactive clinician touchpad and master foot control toggle |
|
Dentist Delivery Head
(Swing Classic) |
• Handpiece Capacity: 3 automatic pneumatic handpiece control ports • Fluid Controls: Individual water coolant toggles + master air coolant adjustment valve • Syringe: 1 doctor’s 3-way air/water syringe • Tubing: Smooth, highly wipeable asepsis tubing to prevent bio-film accumulation • Tray: Premium stainless steel instrument tray with a removable, non-slip silicone pad • Foot Control: Multi-function wet/dry foot controller for seamless handpiece operation |
| Assistant Vacuum Package |
• Mounting: Chair-mounted, pivoting swing rear assistant arm module • Evacuation Lines: 2 High-Volume Evacuators (HVE) + 1 Saliva Ejector (SE) • Syringe: 1 assistant’s 3-way air/water syringe • Filtration: Integrated, easily accessible solids collector/filter trap • Utility Hooks: Quick-Disconnect (QD) air outlet and water outlet built directly into the assistant tray |
| Water & Utility System |
• Water Source: Dual-source management system (Toggle easily between City Mains / Independent Bottled Water) • Umbilical: 5-foot heavy-duty flexible floor umbilical line • Junction Box: Floor-mounted box containing air/water filters, pressure regulators, and master shut-off valves |
| Operatory Light |
• Mounting: Fluid swing-mount overhead light configuration • Illumination: Energy-efficient, true-color LED operating light • Sterility Control: Proximity motion-sensor control for complete touchless operation (on/off/dimming) • Intensity: 3-level calibrated brightness adjustment |
