Description
Product Overview

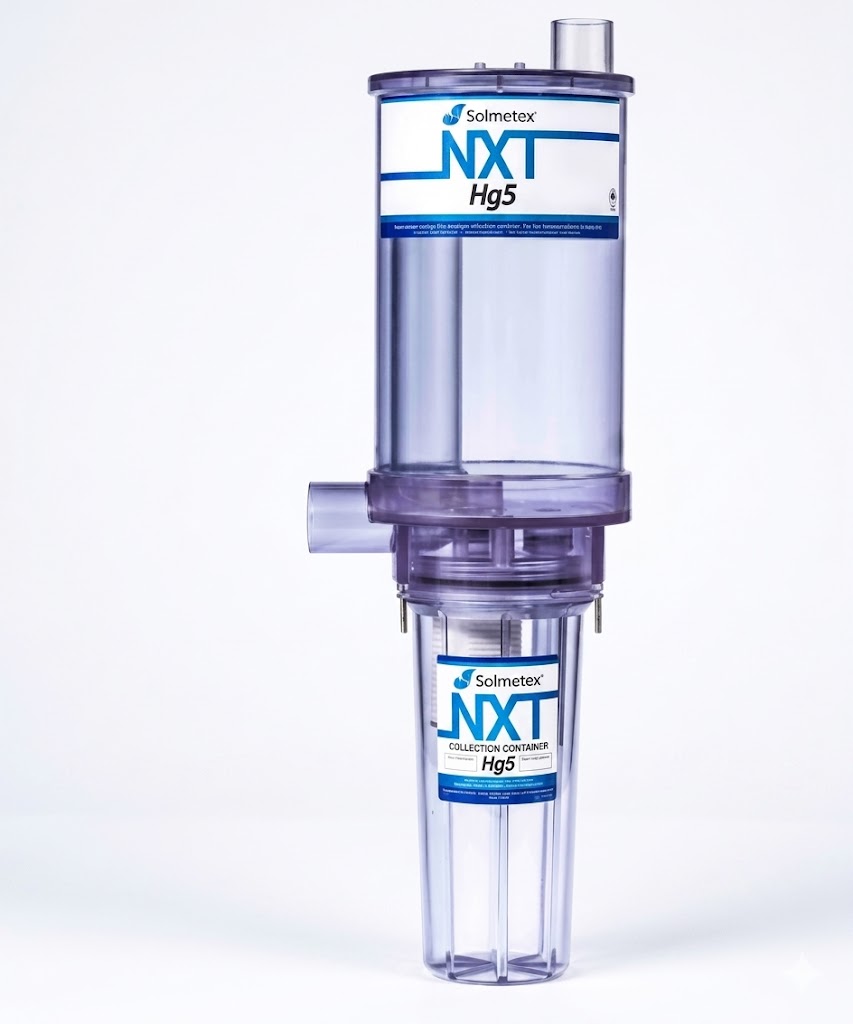

The Solmetex NXT Hg5 Amalgam Separator is the dental industry’s leading turnkey solution for wastewater sediment management and strict EPA regulatory compliance. Certified under ISO 11143:2008 standards to remove greater than 99% of amalgam and heavy metal solids from waste streams, this system prevents harmful chemical discharge while actively protecting expensive downstream vacuum equipment. Designed with a clear, highly visible body for fast inspections, the compact NXT Hg5 operates continuously in the background and features a completely tool-free collection container changeout workflow.
Key Pillars of Value
-
Total EPA Regulation Compliance: Delivers full compliance with the EPA Dental Rule via an ISO-certified 99% separation rate, backed by an all-in-one mail-back recycling infrastructure that grants 24/7 online access to certificates of recycling.
-
Virtually Maintenance-Free Operation: Requires zero complex service contracts or upkeep. When the sediment line is reached, a tool-free, 2-minute collection container replacement keeps the operatory running without unexpected downtime.
-
Universal System Protection: Captures abrasive metallic sediment before it can reach and damage vacuum lines, significantly extending the operational life of both wet ring and dry vacuum pump systems.
Complete Feature & Specification Matrix
| Component Module | Features & Technical Specifications |
| Separation & Performance |
• Certification Standards: ISO 11143:2008 certified to capture greater than 99% of solids.
• Flow Dynamics: Maximum managed flow rate of 1000 mL/min.
• Operational Logic: Features an automatic bypass outlet channel to guarantee zero loss of vacuum suction even when the collection filter is full. |
| Physical Footprint & Plumbing |
• Capacity Profile: Standard model services 1 to 10 operatories simultaneously.
• Piping Layout: Dual 1-1/2″ (1.5 inch) Schedule 40 PVC inlet and outlet connection ports.
• Mounting Flexibility: Engineered with a compact backplate configuration suitable for wall-mounted or free-standing floor installation.
• Physical Dimensions: 11″ W x 30″ H x 8″ D. |
| Environmental Parameters |
• Maximum Temperature: Safe handling up to 120°F (52°C).
• Maximum Vacuum Load: Rated up to 15″ Hg (51 kPa).
• System Compatibility: Universally functional with both wet ring pumps and dry vacuum units. |
| Recycling & Maintenance |
• Container Inspections: Clear upper and lower chamber architectures for fast, weekly visual sediment level tracking.
• Changeout Interval: Must be replaced once every 12 months or when sediment reaches the fill line (whichever occurs first).
• Turnkey Kit Inclusions: Replacement kits ship with pre-paid UPS mail-back shipping labels and dedicated recycling documentation containers. |
| Warranty Protections |
• Air-Water Separator (Top): Standard 2-Year Manufacturer Warranty against defects.
• Collection Container (Bottom): Standard 1-Year Manufacturer Warranty.
• Extended Warranty Program: Standard 2-year system protection is automatically extended to a 5-Year Warranty with the documented, continuous use of Solmetex PowerScrub Vacuum Line Cleaner (maintaining an EPA-compliant pH between 6 and 8). |
