Description
Product Overview

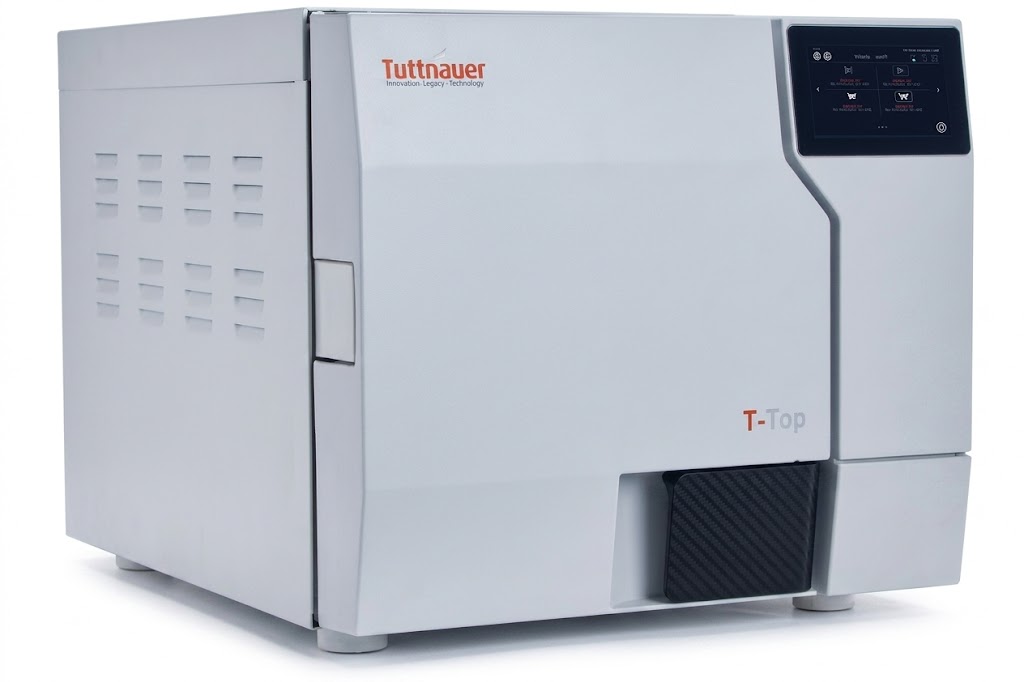

The Tuttnauer T-Top Autoclave is a compact, high-performance automatic tabletop steam sterilizer engineered specifically to meet the everyday sterilization workloads of small-to-medium medical and dental clinics. Combining plug-and-play simplicity with advanced data tracing, it operates as a highly efficient unit requiring only a standard power source to begin operation.
The T-Top series features a closed-door drying phase and separate water reservoirs for clean and used water, guaranteeing that pristine, mineral-free water is introduced for every individual cycle. Available in both 21-liter (T-Top 10) and 27-liter (T-Top 11) chamber capacities, this series provides standard Class S gravity cycles and is dynamically software-upgradable to comprehensive Class B pre/post-vacuum performance. This eliminates the need to purchase an entirely new machine if clinical compliance demands shift.
Key Pillars of Value
-
Future-Proof Software Scalability: Starts as a highly capable Class S gravity sterilization unit but features an exclusive, software-driven path to upgrade directly to full Class B pre/post-vacuum cycles without changing physical equipment.
-
Advanced “Smart Clinic” Connectivity: Standardized with cloud-based IoT software, integrated Wi-Fi, an Ethernet port, and dual USB ports. This lets staff remotely monitor sterilization cycles via smartphones or tablets and download diagnostic reports instantly.
-
Guaranteed Pure Water Delivery: Built with distinct, isolated water tanks for clean and wastewater. Used water is drained immediately after a cycle, ensuring that recycled or contaminated water never touches clean instruments.
-
Audit-Ready Documentation: Features an internal memory storing up to 500 sterilization cycles. Data can be seamlessly exported to a PC via USB or printed using an optional barcode desktop printer to streamline practice traceability compliance.
Complete Feature & Specification Matrix
| Category | Feature & System Specifications |
| Chamber Capacity Options |
• T-Top 10: 21 Liters / 5.5 Gallons (Usable Space: ~17 Liters)
• T-Top 11: 27 Liters / 7 Gallons (Usable Space: ~21 Liters) |
| Chamber Dimensions |
• T-Top 10: 10″ Diameter x 18″ Depth (249 mm x 450 mm)
• T-Top 11: 11″ Diameter x 18″ Depth (280 mm x 452 mm) |
| Loading Configuration |

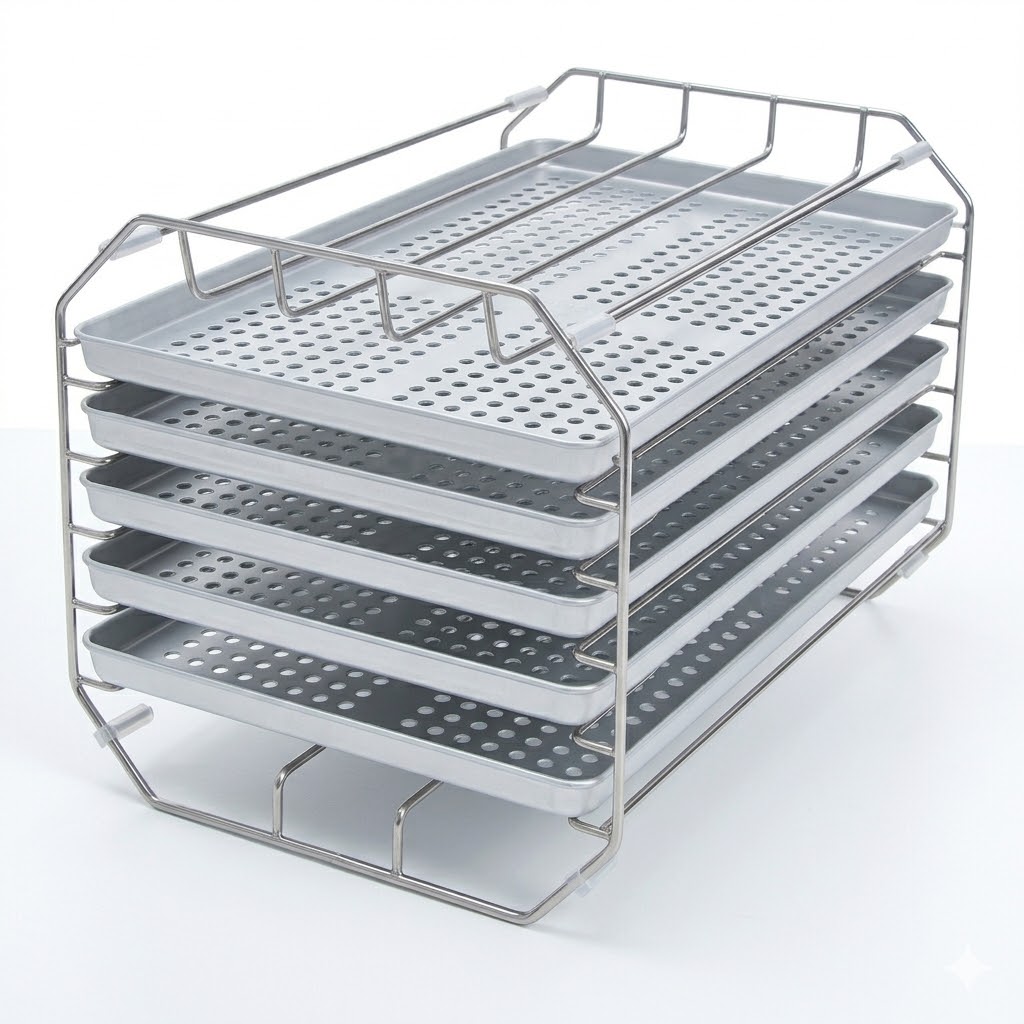

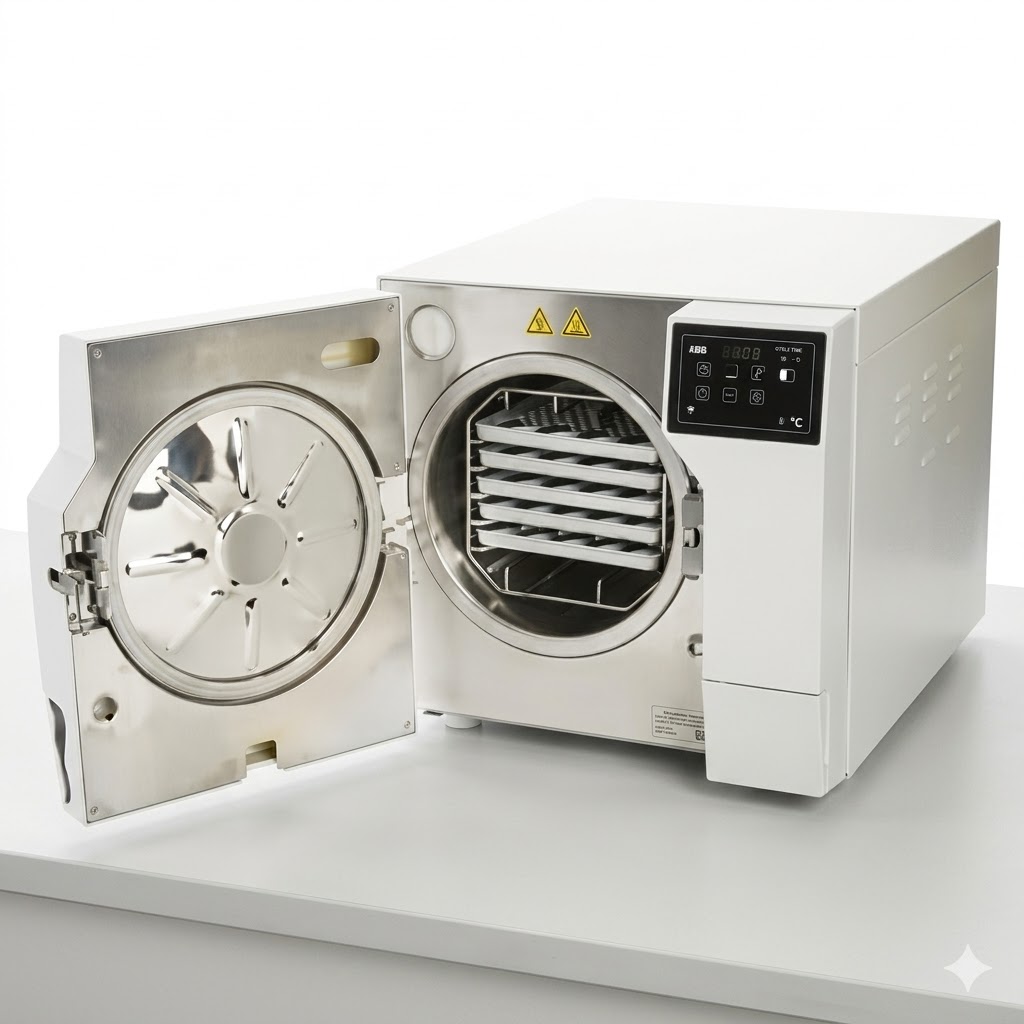

• Accommodates up to 4 to 5 stainless steel instrument trays.
• T-Top 10 accommodates 3 full-size and 3 half-size cassettes (~80 dental instruments). |
| User Interface |
• High-resolution, multi-color LCD touchscreen with intuitive icons.
• Displays real-time cycle tracking, program parameters, water levels, and sterilization times. |
| Water System |
• Reservoirs: 3.6L Clean Water Tank / 3.75L Wastewater Tank (5.75L Overflow capacity).
• Filling: Manual filling on T-Top 10; T-Top 11 includes an automatic water fill and drain connection kit. |
| Sterilization Load Types |
• Class S Configuration: Unwrapped instruments, wrapped instruments, and dental handpieces.
• Class B Configuration: Adds support for deep hollow objects, porous loads, and clinic textiles. |
| Cycle Programs & Speeds (Average standard loads including drying) |
• Unwrapped Instruments (270°F/134°C): 21 mins (T-Top 10) | 37-38 mins (T-Top 11).
• Wrapped Pouches (270°F/134°C): 47 mins (T-Top 10) | 59 mins (T-Top 11).
• Handpieces (270°F/134°C): 50 mins (T-Top 10) | 70 mins (T-Top 11).
• Built-In Test Cycles: Features Vacuum Test and Bowie & Dick Test programs. |
| Physical Footprint |
• T-Top 10 Dimensions: 23″ D x 18.1″ W x 18″ H (Weight: 99 lbs / 45 kg).
• T-Top 11 Dimensions: 23″ D x 19.5″ W x 17.5″ H (Weight: 115 lbs / 52 kg).
• Optimized for space-saving countertop deployment (designed for standard 60 cm shelf depths). |
| Electrical Profiles |
• Voltage: 110V – 120V alternating current.
• Frequency: 50 – 60 Hz
• Power Draw: 1700W. |
| Regulatory Compliance |
• CE MDR Certified.
• Electrical Safety & Compatibility: IEC 61010-1, IEC 61010-2-040, IEC 61326-1.
• Pressure Vessel: PED 2014/68/EU.
• Software & Performance Validation: EN 13060, EN 62304, and FDA Guidance. |
